Model No: GAT20

Wireless GPS Tracking Device Card Type Bluetooth GPS Tracker Locator Real Time Tracking

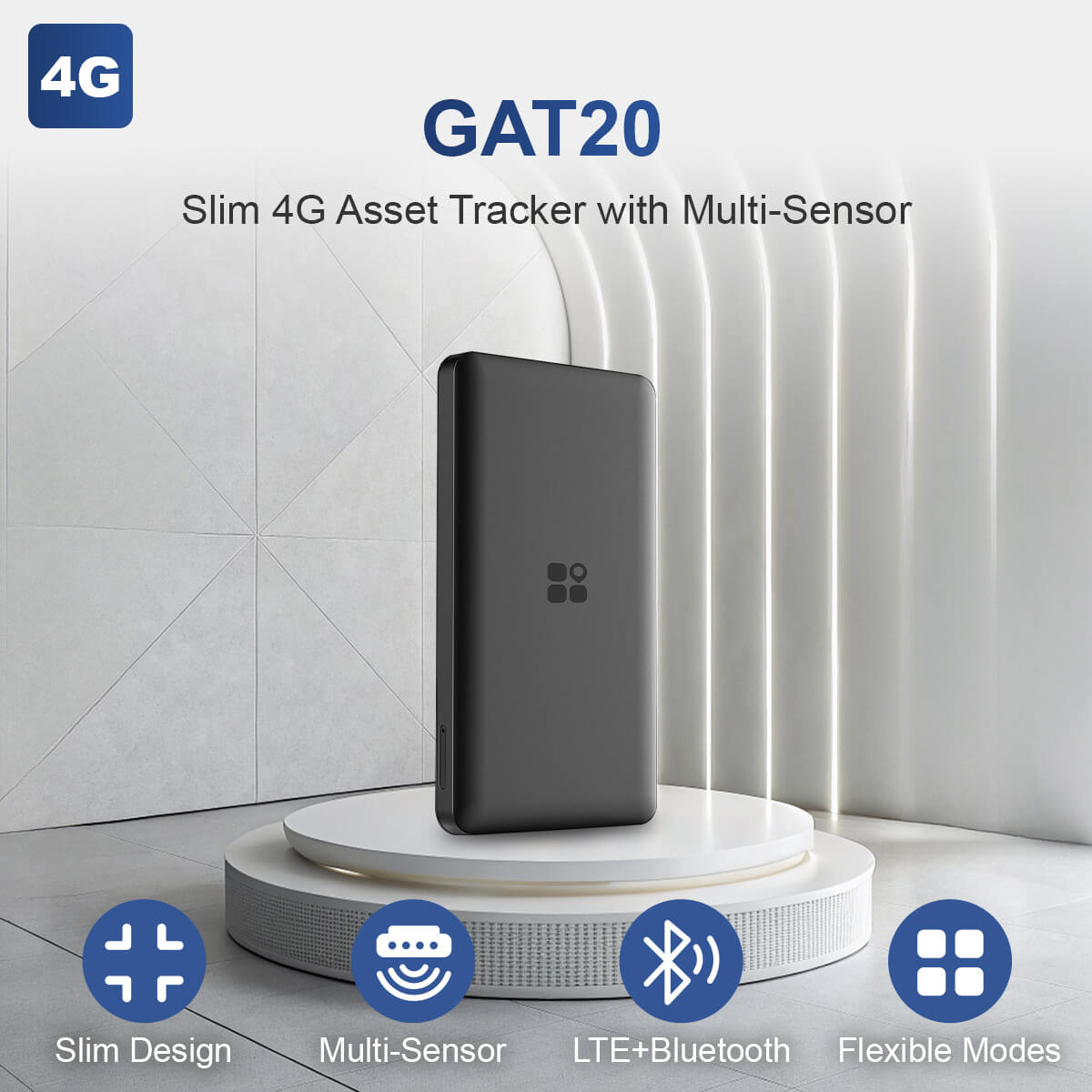

GAT20 Card-style Rechargeable GPS
This GPS tracker is a 4G all-network communication intelligent positioning terminal specifically designed for asset and cargo transportation management. It features a card-style design, with a compact body, making it convenient to be installed in a wider range of application scenarios.
Quantity :
Contact Now
gps tracker locator device

4G Wireless GPS Tracker Locators Device

GAT20 GPS tracker supports a variety of positioning technologies, including satellite positioning (Beidou/GPS/AGPS), base station positioning, Wi-Fi positioning, and Bluetooth positioning technology.

Indoor and Outdoor Positioning
Multiple Positioning Ways Satellite& Bluetooth
Easy Installation
Plug-and-play wired design
Real-Time Tracking
Monitor fleet location 24/7
Easy Installation
Plug-and-play wired design

Key Features

1 Meeting Indoor and Outdoor Positioning Needs

It meets the indoor and outdoor positioning needs such as logistics and supply chain visualization management, tracking and management of high-value goods/pallets/packages, and recyclable items/assets.

2 Multiple G-Sensing Technologies

Through built-in temperature and humidity sensors, Hall sensors, three-axis accelerometers/six-axis gyroscopes (optional), light sensors, etc., the GAT20 can collect real-time information of goods/assets (such as temperature and humidity, door magnetic status, violent transportation/sorting, and unpacking) and transmit the data to the cloud platform via 4G communication.

Technical Specifications

SpecificationDetails
Bluetooth
BLE 5.0
FrequencyBDSB1, 1561.098MHz ； GPS L1,1575.42MHz
Communication systemLTE CAT1
Memory8MB
Positioning ModeSupport GPS/AGPS/Beidou positioning, Wi Fi/cellular network/Bluetooth positioning
Battery
2500mAh/3.7V
Location accuracy<10m
TTFFHot Start:1sec (OPEN SKY)
Cold Start:32sec(OPEN SKY)

Advanced Fleet Management Features

GPRS Fleet Vehicle Trackers Key Features

1

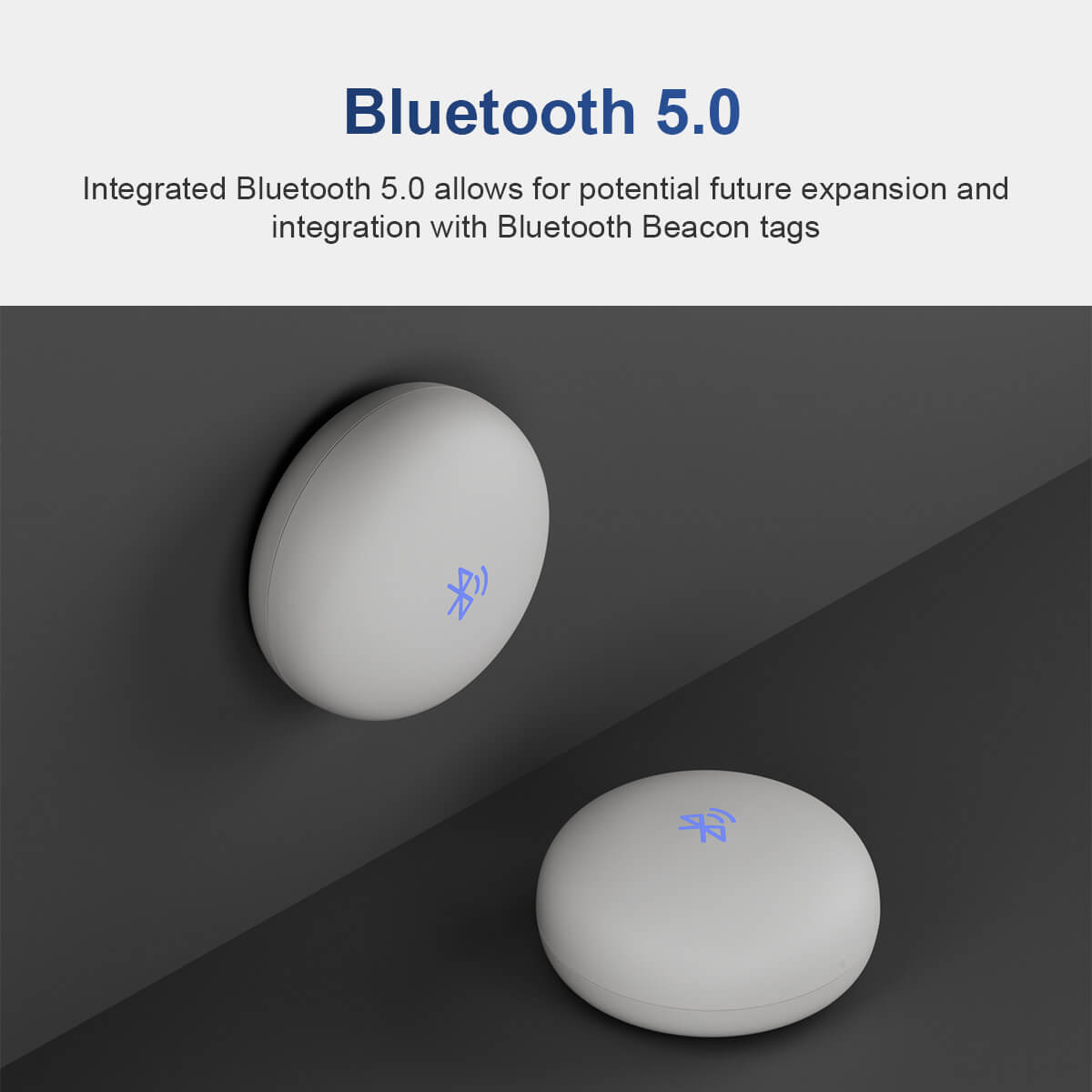

Bluetooth 5.0

Based on the Bluetooth 5.0 communication technology, on the one hand, when combined with Bluetooth Beacon tags, it can realize the indoor positioning technology of goods/assets. On the other hand, it can be integrated with third-party Bluetooth sensors to meet the expansion requirements of more professional scenarios.

2

Wireless & None IInstallation

Built-in battery 2500mAh/3.7V industrial-grade lithium polymer battery, no wiring required, can be placed anywhere in the car.

3

Micro Size, Big Impact

It features a compact card-style design, with a delicate and portable body, making it convenient to be flexibly installed in various application scenarios.

4

Asset Vehicle Cargo Management

Built-in Bluetooth 5.0 communication technology further expands the application scope of the product. When used in conjunction with Bluetooth Beacon tags, it can achieve precise indoor positioning of goods or assets.

GAT20 4G Wireless GPS Tracker With Bluetooth Beacon

Equipped with light sensors, temperature/humidity sensors, Hall sensors, 3-axis/6-axis sensors, etc., it can realize function extensions such as unpacking reminders, temperature/humidity monitoring, door magnetic monitoring, and violent transportation monitoring. Meanwhile, it supports Bluetooth 5.0 communication, enabling more application scenarios for GAT20.

Product Function : Temperature and humidity monitoring/unpacking monitoring/door opening monitoring/violent transportation monitoring/Mode switchable/long-lasting battery life/battery display/mode switchable
